Complete guide to Optimist ropes
Hello everyone!
Recently, I wondered whether there is a comprehensive guide to the ropes used in Optimist sailing. I never specifically searched for one, but while drafting this article, I looked around and mostly found partial information. So today’s article aims to compile a complete overview of all the ropes used in an Optimist—everything in one place and in English.
For clarity, I’ve grouped the ropes based on their location and function:
Rope Categories by Location:
- Hull Ropes
- Rigging Ropes (Boom and Mast)
- Sail Ropes
Note: Many ropes today are avaiable in spliceable versions (for items like the cunningham, sprit-halyard, and boom bridle), so I’ve measured the lengths for you as well.
Some ropes in an Optimist are subject to class rules specifying their length, diameter, and even certain properties. Most of these requirements are found in section 3.5.5 of the optimist class rules, although other sections sometimes reference specific ropes. Do you have the Class Rules saved on your phone?

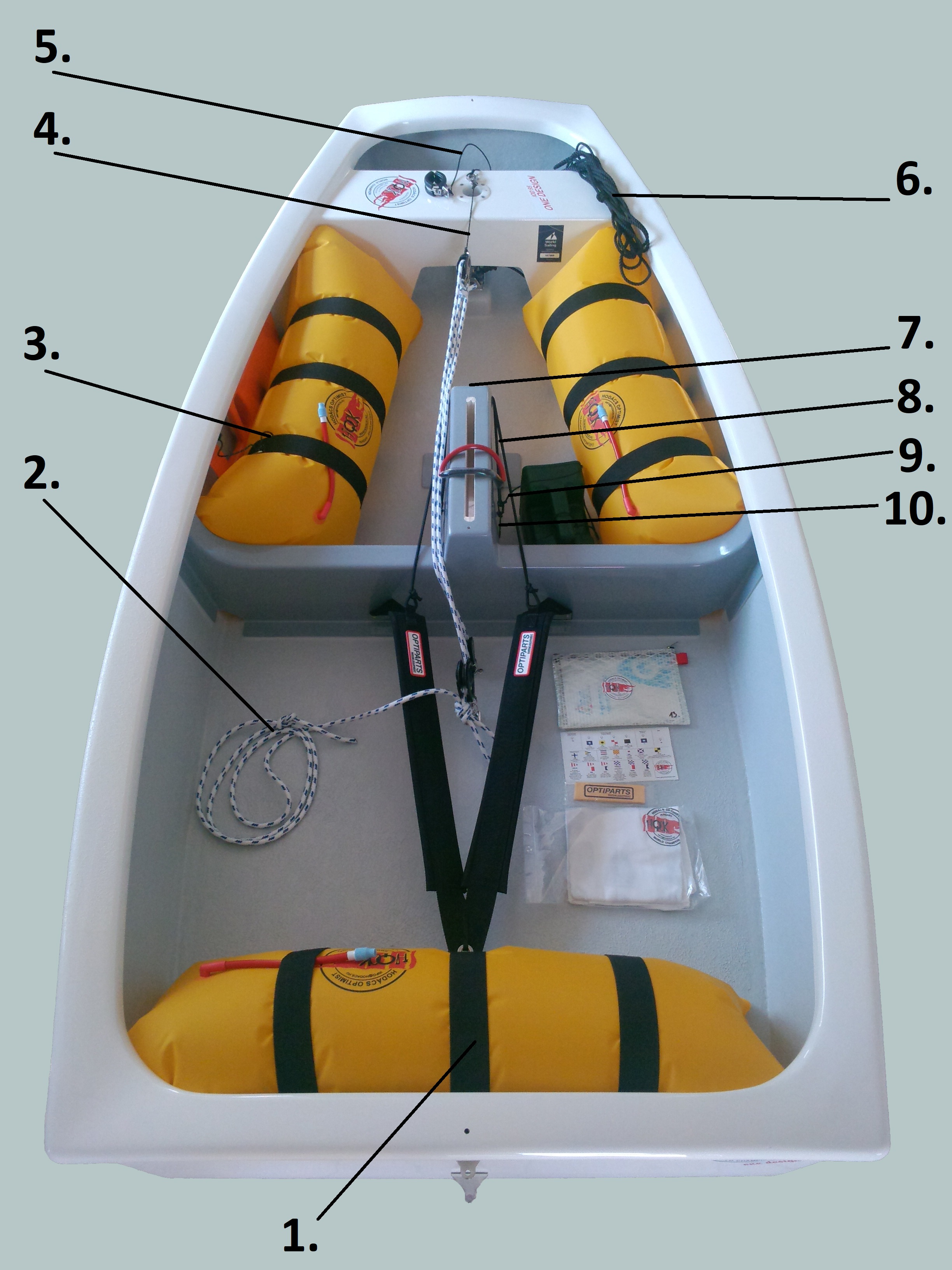

Hull Ropes
A few words about the hull ropes: regarding the mainsheet, you’ll notice there are at least three variations. If you e.g. changing from 3:1 to 4:1, the original length may not
be sufficient to let the boom extend fully to the side, especially if you want
it beyond 90 degrees in strong wind. However, in strong wind, that might not always be
the goal!

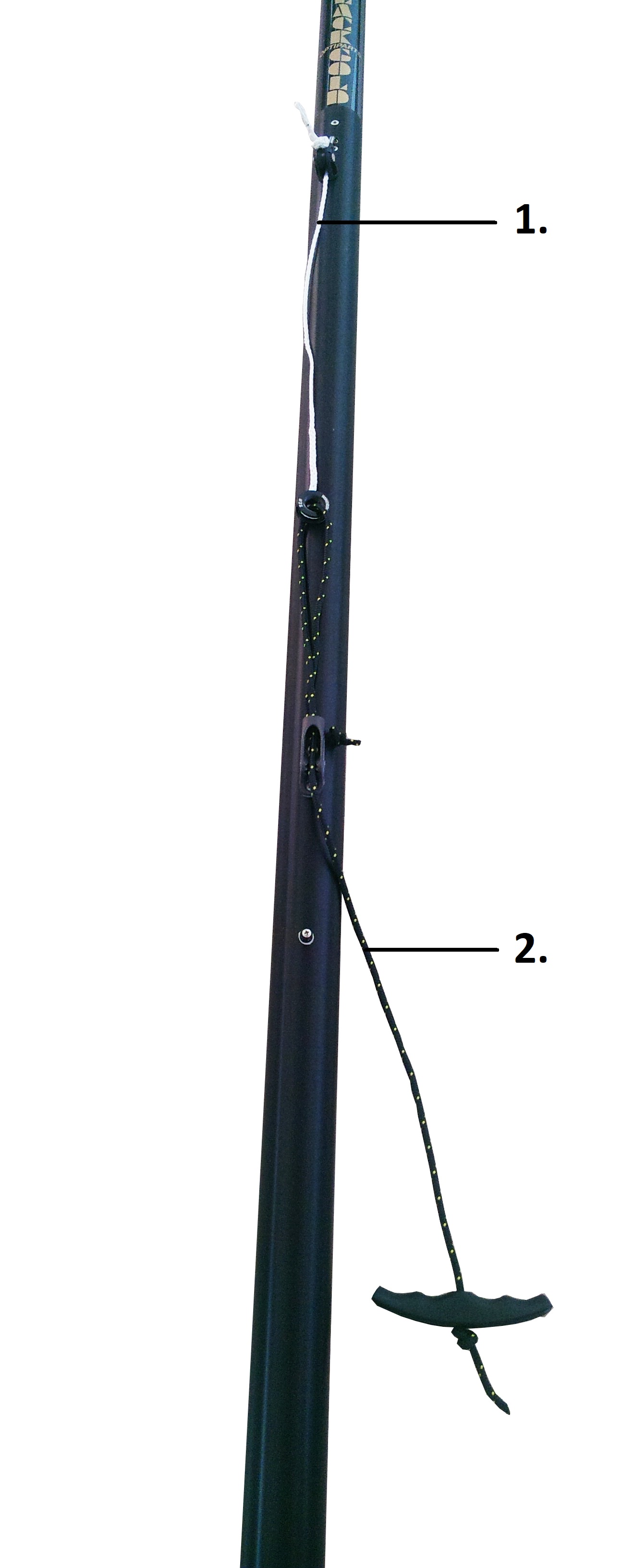

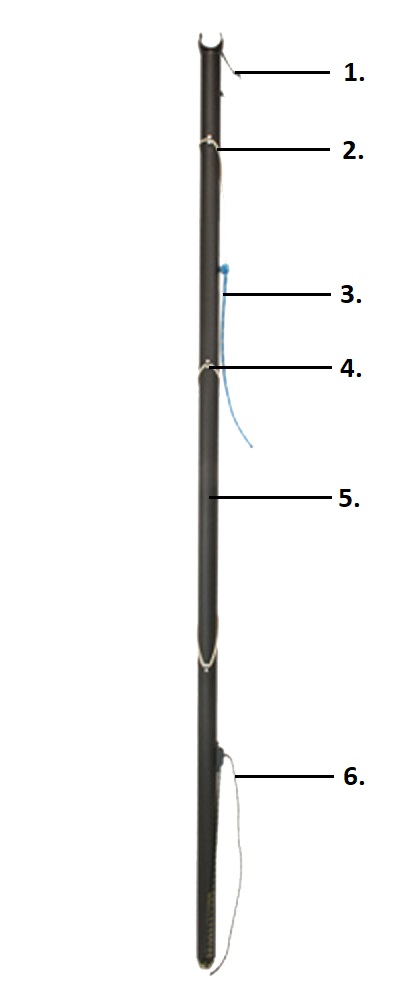

Rigging Ropes
(Boom and Mast)
The rigging ropes are numerous and varied. If you
don’t have spliceable ropes, that’s perfectly fine—you can use standard ropes and cut them
slightly shorter.
Summary
Seeing all the ropes laid out like this gives a clear sense of how much rigging an Optimist actually requires. I measured each rope
multiple times, so the lengths should be accurate. However, if you find that
one of them doesn’t work quite right, let me know the correct length, and I’ll update
the table.
Using
this overview, you can prepare replacement ropes at home, saving valuable time
before heading out onto the water— for both your coach and your team!
